Construction

Each Kropf Park Model is designed and produced to the highest standards of excellence.  With customer satisfaction as our ultimate goal; quality construction, attention to detail, and bountiful customization options are at the forefront of every Kropf Park Model.


The Layers of Construction

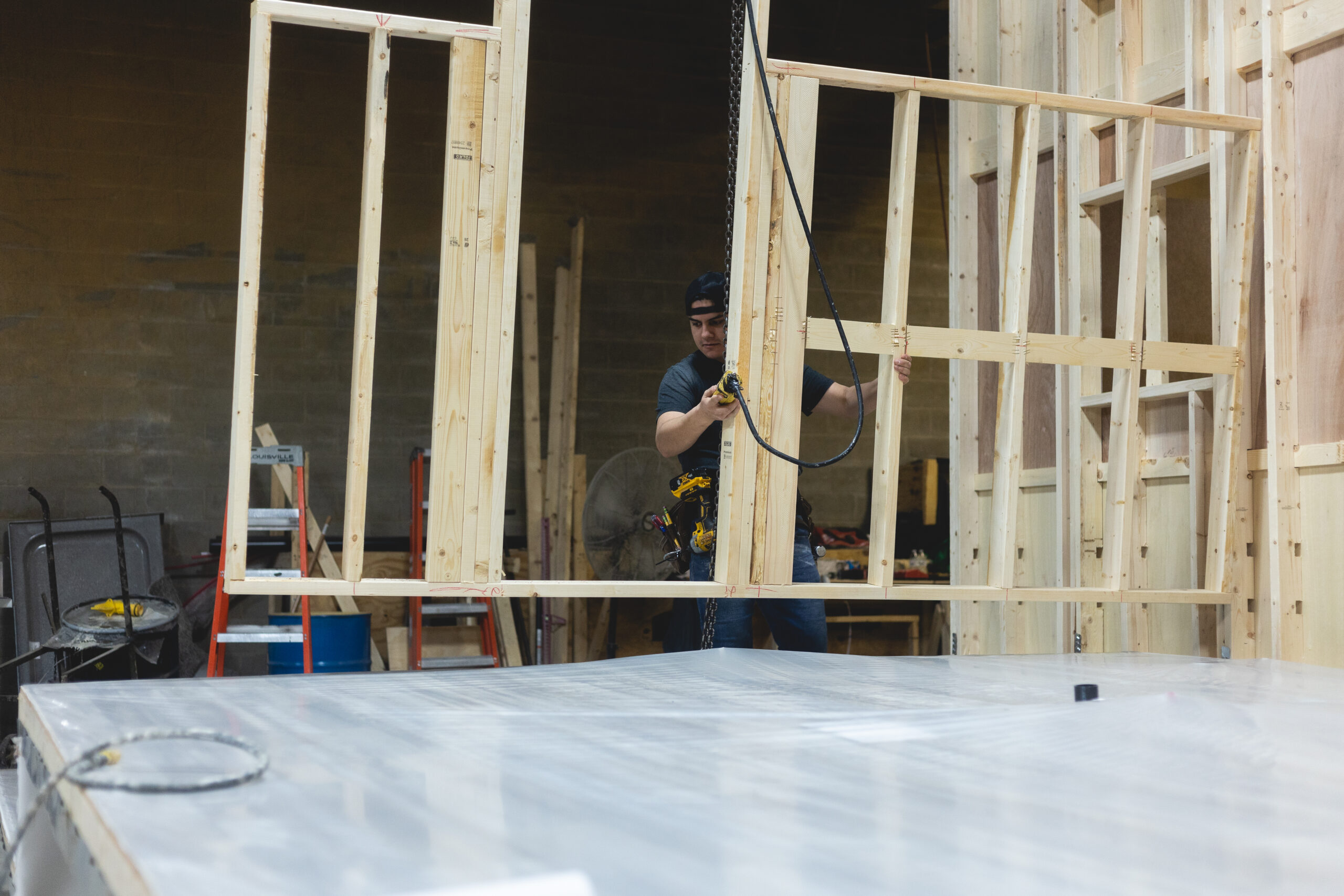

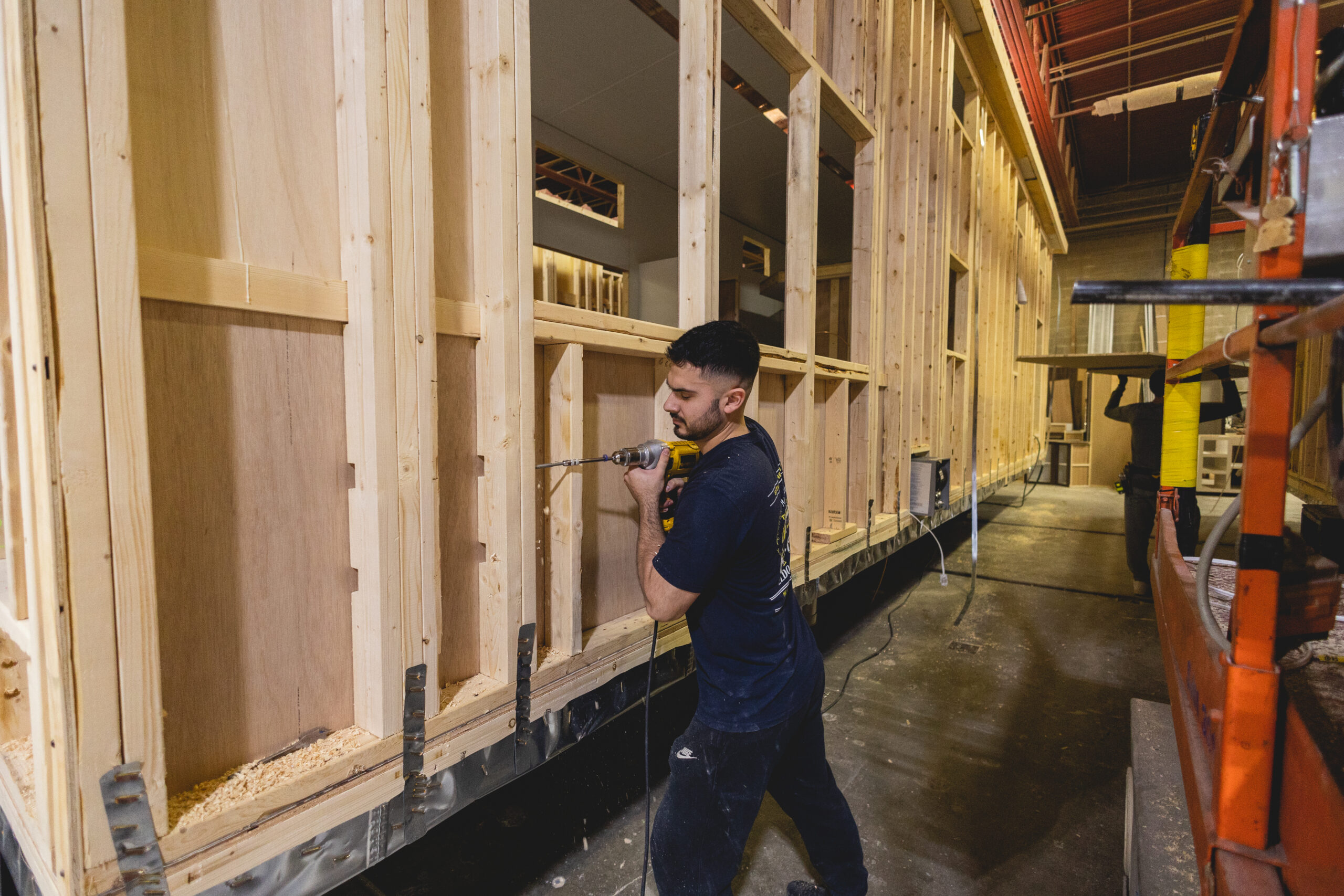

  1. 2×4 Sidewall Framing 16″ O.C.
  2. Bay Window Front End
  3. 5/8″ Marine Grade Plywood Decking Screwed & Glued
  4. Enclosed Underbelly
  5. 10″ I-Beam Chassis with Full Outriggers
  6. Detachable Hitch
  7. In-Floor Ducted Heat Runs
  8. 2×6 Floor Joists 16″ O.C.
  9. Fiberglass Insulation R-22 Roof, R-11 Sidewalls and Floors (Canadian R-12 Floors, R-13 Sidewalls)
  10. Double 2×6 Floor Perimeter
  11. Metal Strapping Connecting Sidewall and Floor
  12. Moisture Barrier Sealant on Floor in Wet Areas
  13. Thermoply Undersiding (with Wind Wrap on Canadian Models)
  14. 1/2″ Deluxe Rebond Carpet Pad
  15. Deluxe Carpet or Linoleum
  16. Double Studding Around Doors & Windows
  17. 50 Year Vinyl Siding
  18. Exterior Shutters
  19. 2×6 Fascia Around Roof Perimeter with Side Overhangs
  20. 25 Year Fiberglass Shingled Roof
  21. 3/8″ Roof Decking
  22. 30 lb. Felt Paper
  23. Vented Roof System – Truss Type Rafters 16″ O.C. 40 lb. Certified (60 lb. Canadian)
  24. 5/16″ Gypsum Hi-Strength MRV Ceiling Board with Vapor Barriers
  25. Residential Thermopane Windows
